Klinkerwerk Muhr GmbH
Lichterfeld

Gauge : 750mm
Status : Occasional Working
(click on photos to enlarge)






Date: March 1995

Date: March 1995

Date: March 1995

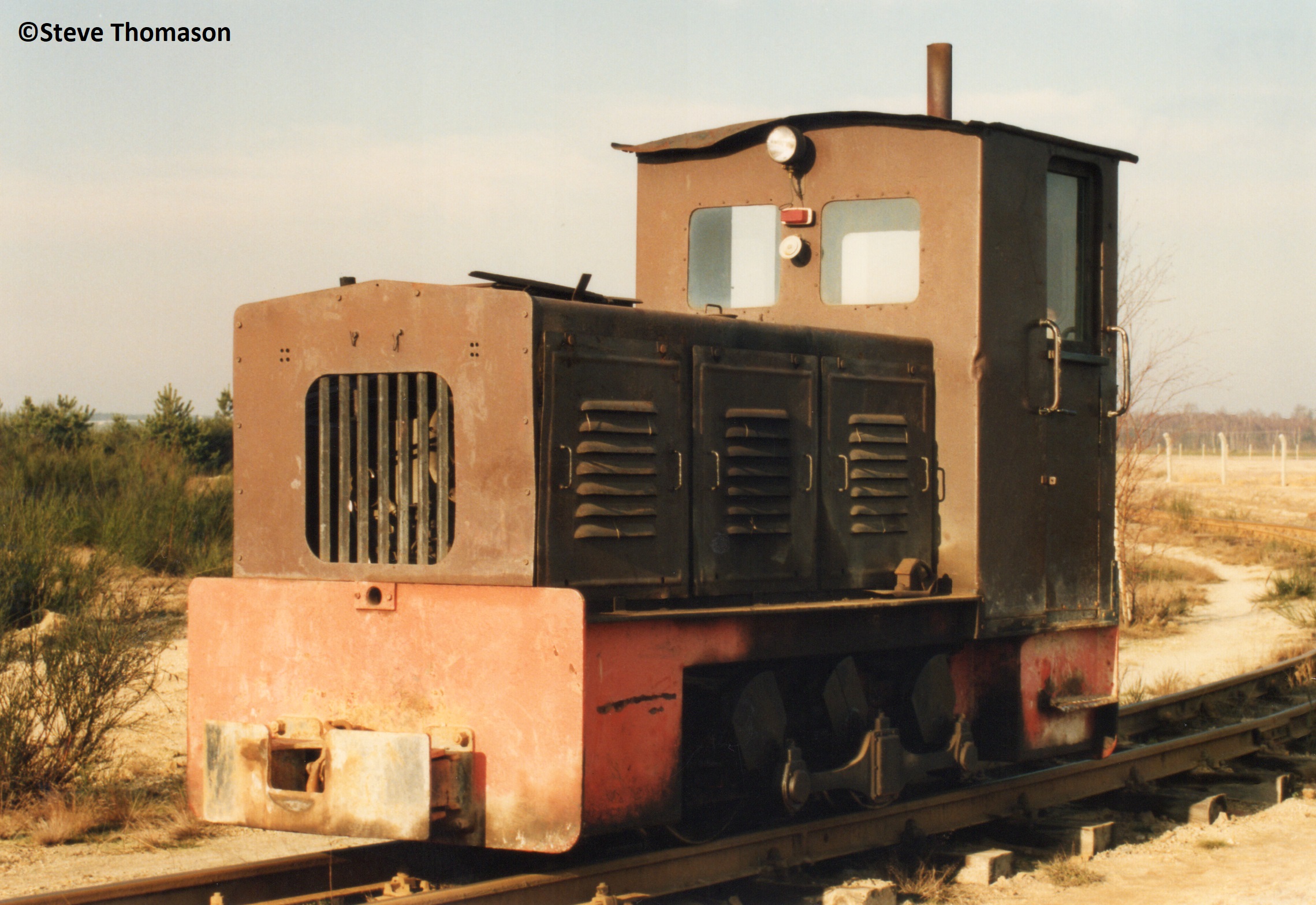

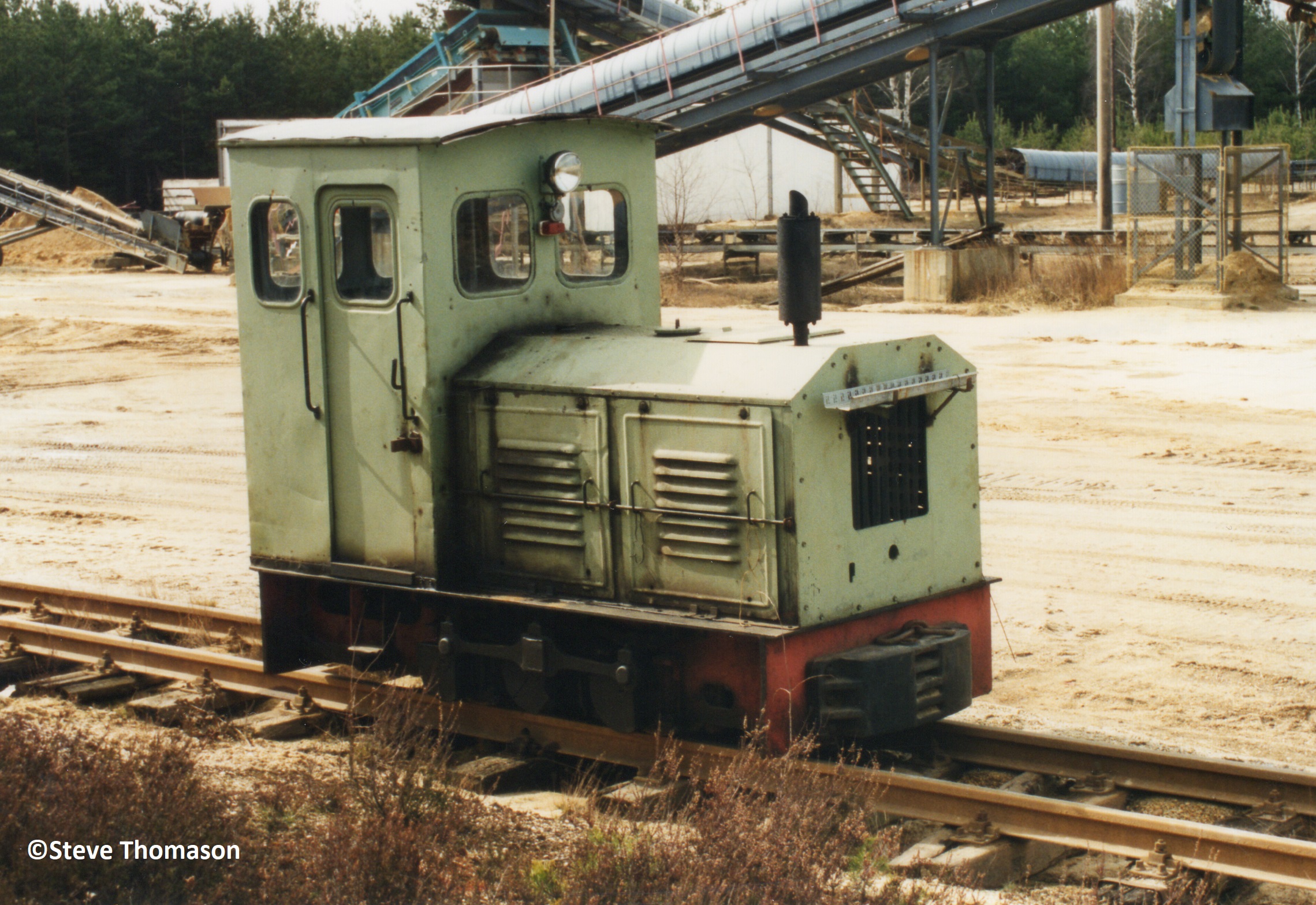

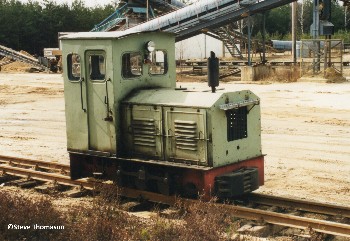

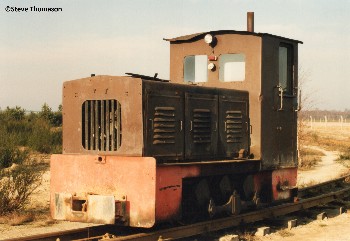

This picture was taken in 1997. Klinkerwerk Muhr still had rail connections to both sand and clay pits nearby. It had a single NS2h loco which at this time was used for hauling sand trains.

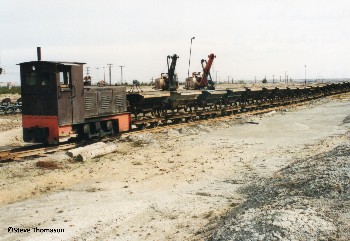

Going back to 1995 an NS3 loco was in use in the claypit. It assisted with loading the skips, and then a new Diema loco was used for line work.

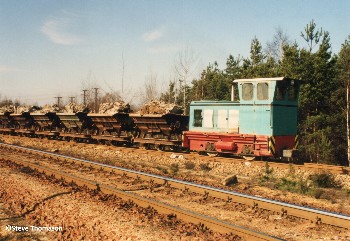

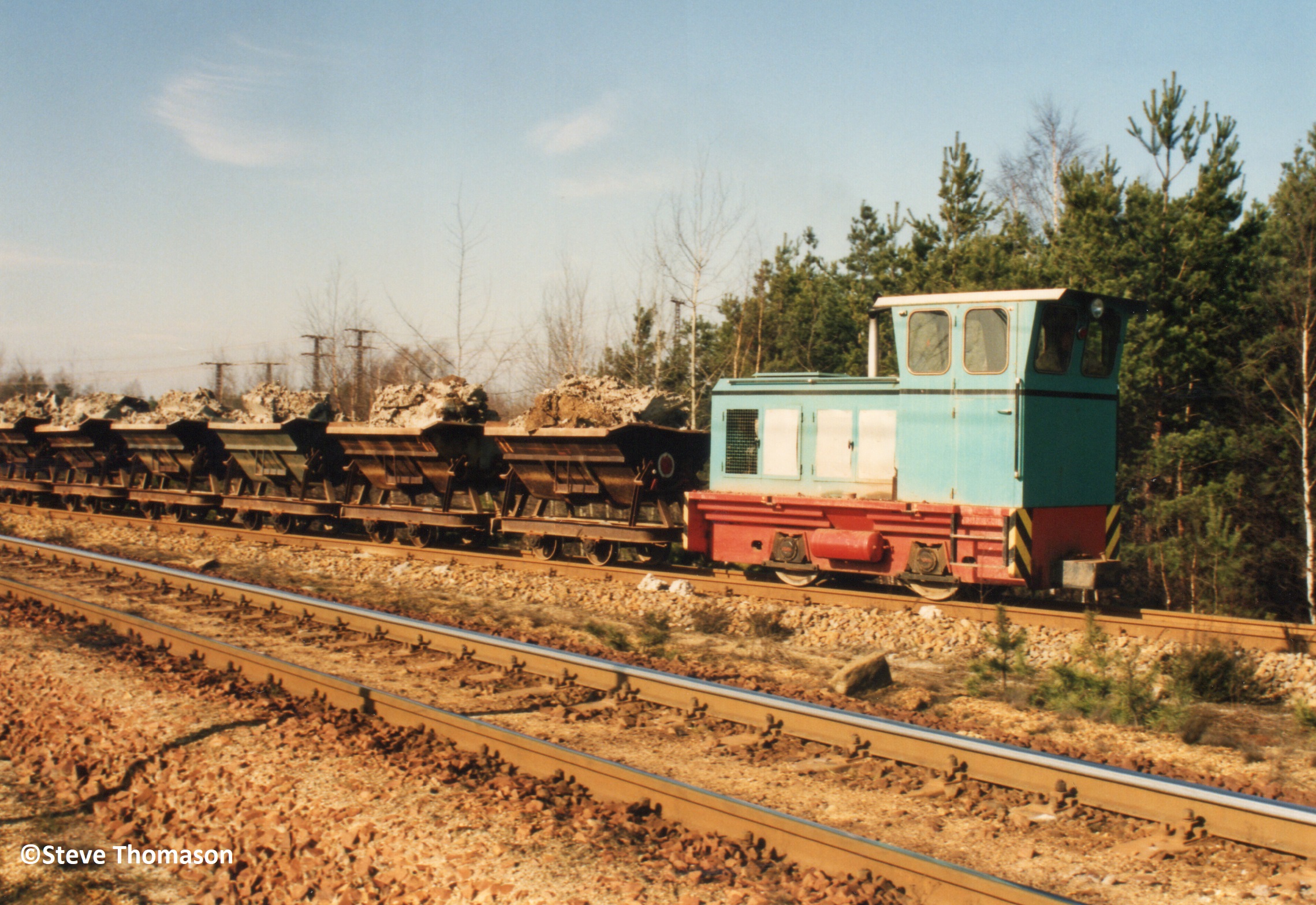

The new Diema loco is a DFL75, seen here taking the clay back to the works. The line runs alongside the brown coal tracks and crossed them on the level near the clay pit.



Date: March 1997

Date: March 1997

Date: March 1997

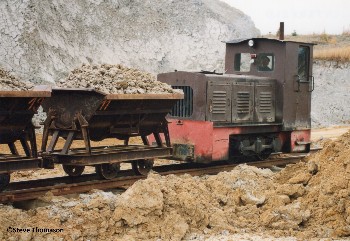

By 1997 the NS3 loco was only in use to pull the skips into a siding by the claypit to allow the Diema to run round its train, due to the lack of a run round loop.

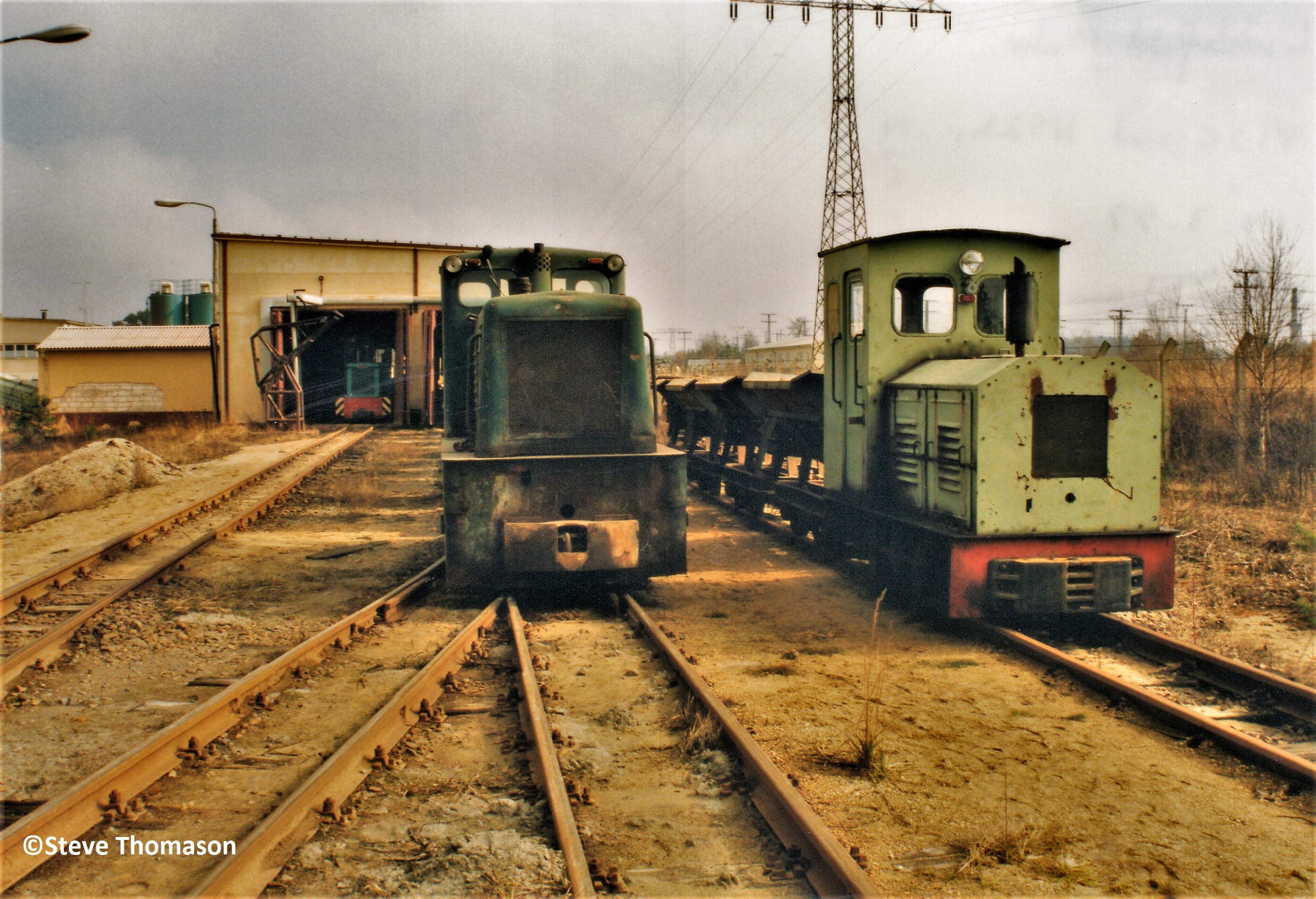

The works itself had been modernised and the tiping shed was relatively new seen here in 1997. The Deima can just be seen inside the shed, a V10C is in the centre, and the NS2h on the right.

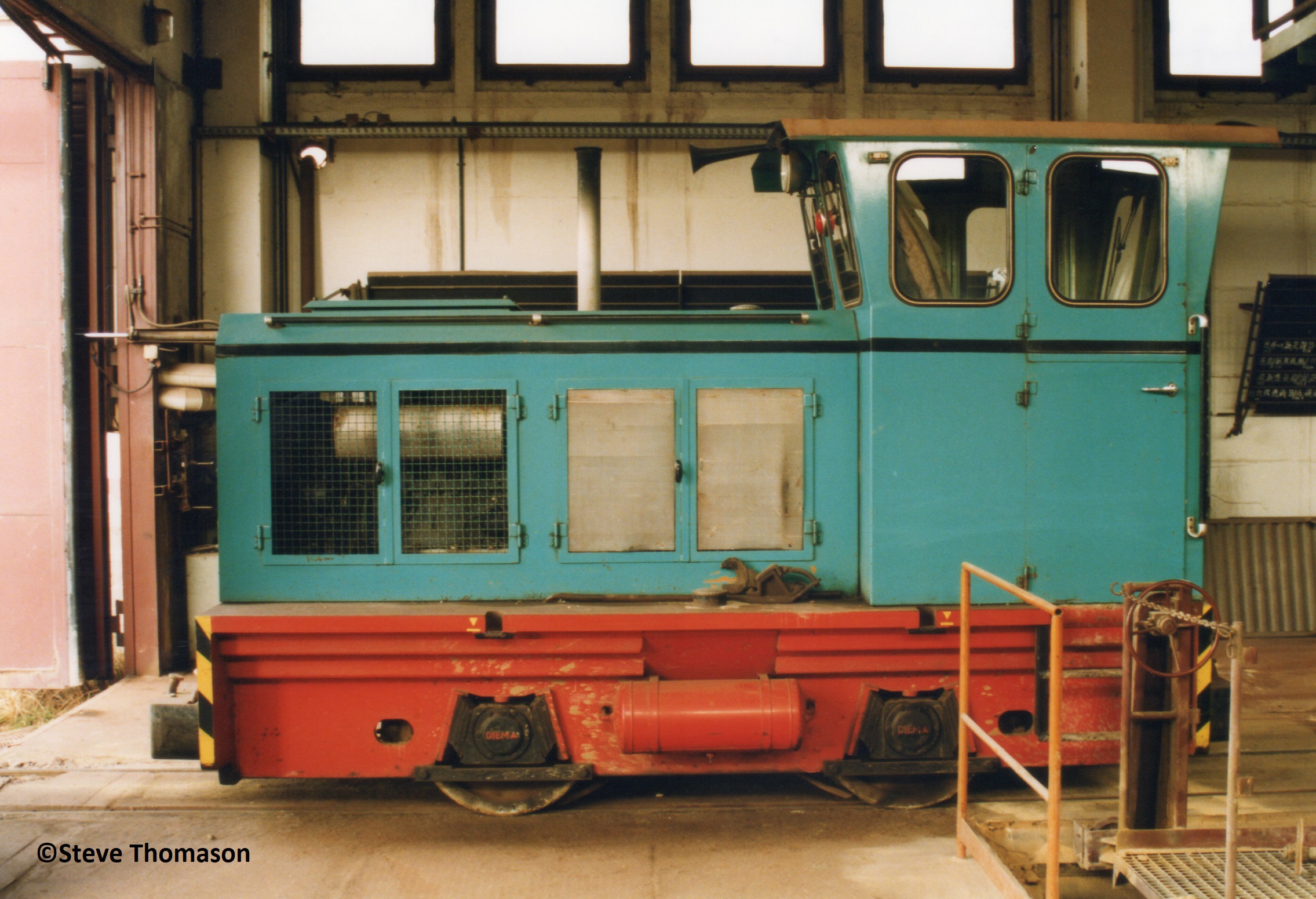

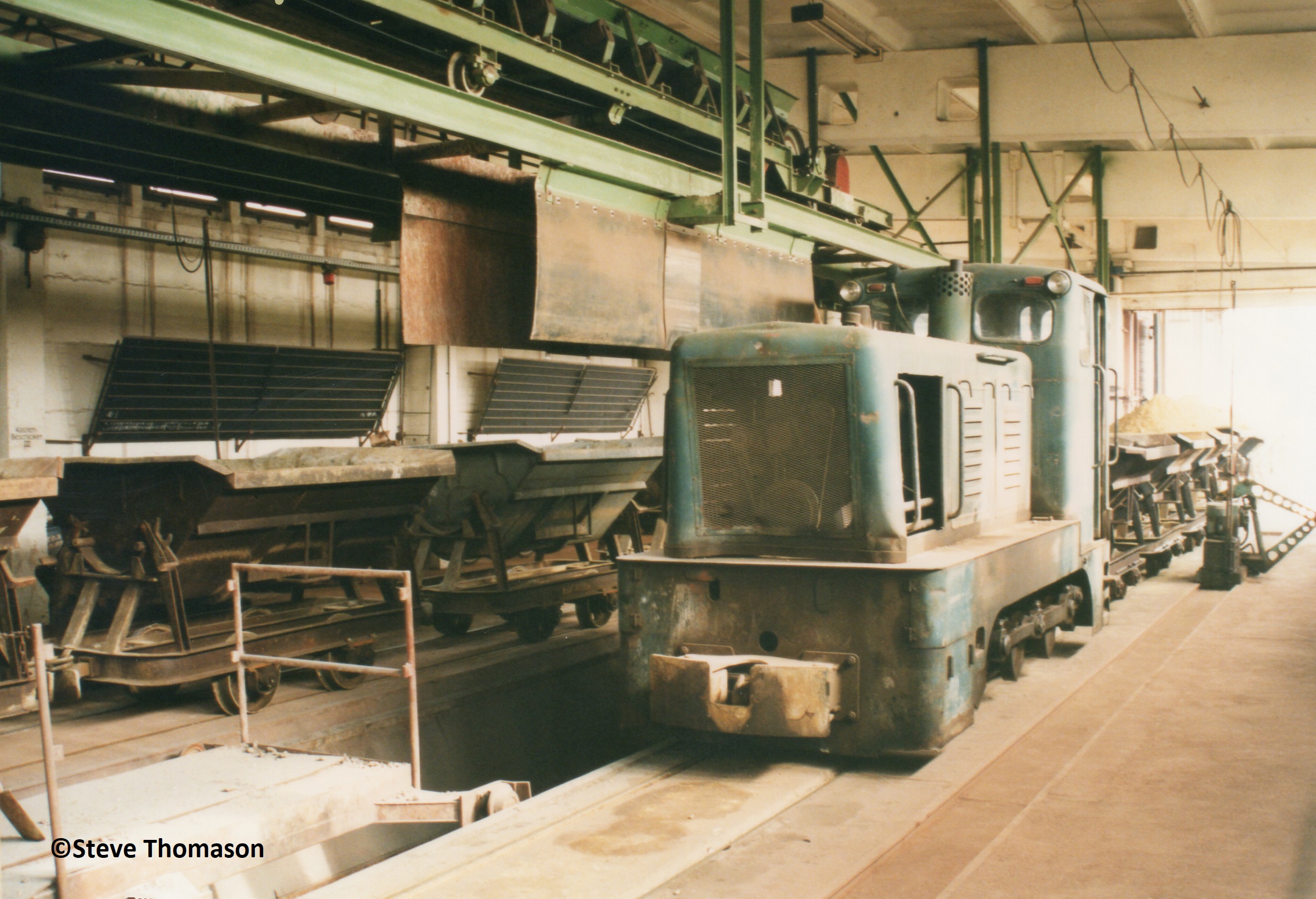

The new Diema loco inside the tipping sheds.

Date: October 1994

Date: October 1994

Date: October 1994

Inside the shed a mechanical arm running alongside the tracks discharged the skips into the hoppers. This railway is reported still to be working but possibly just for sand trains.

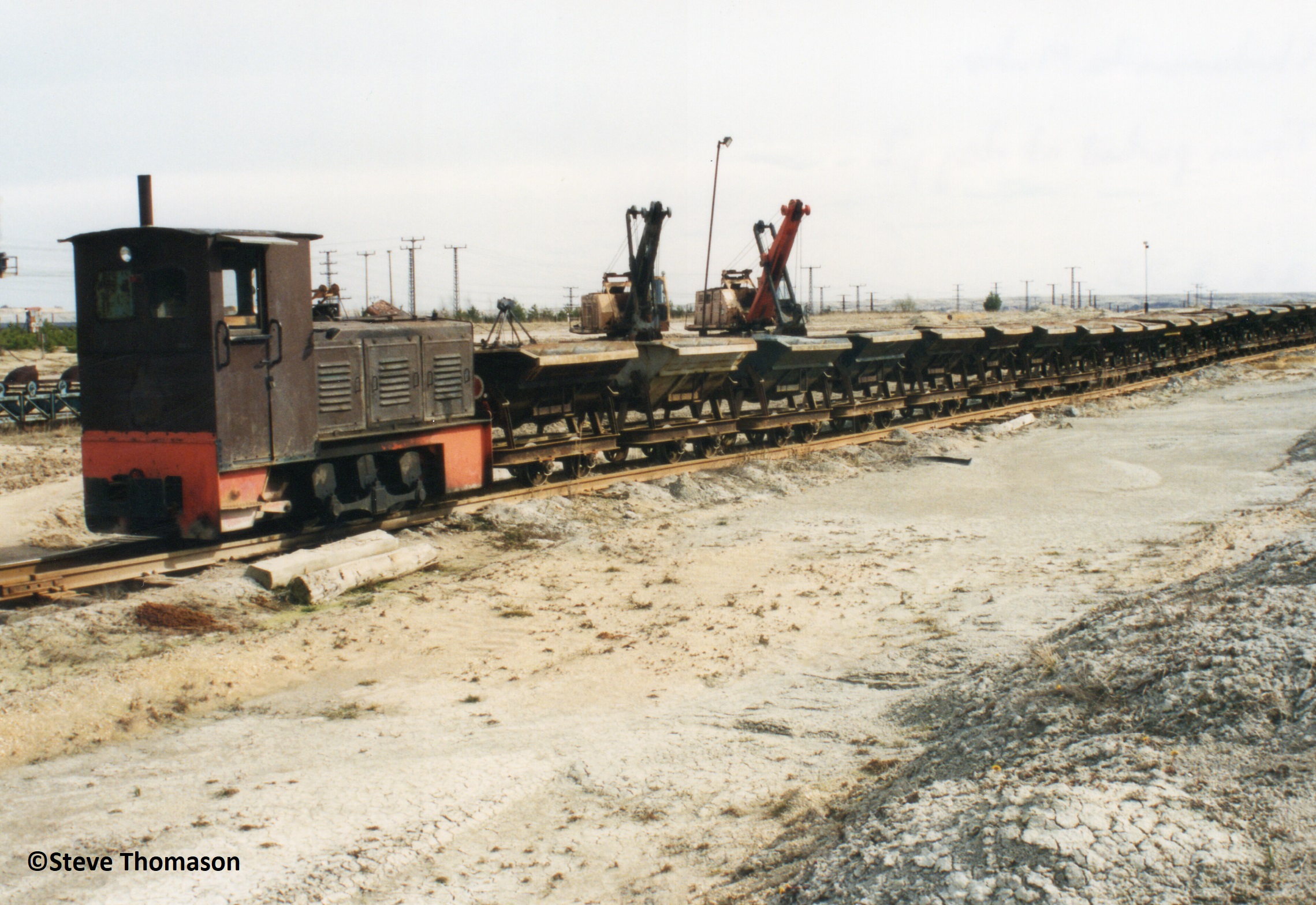

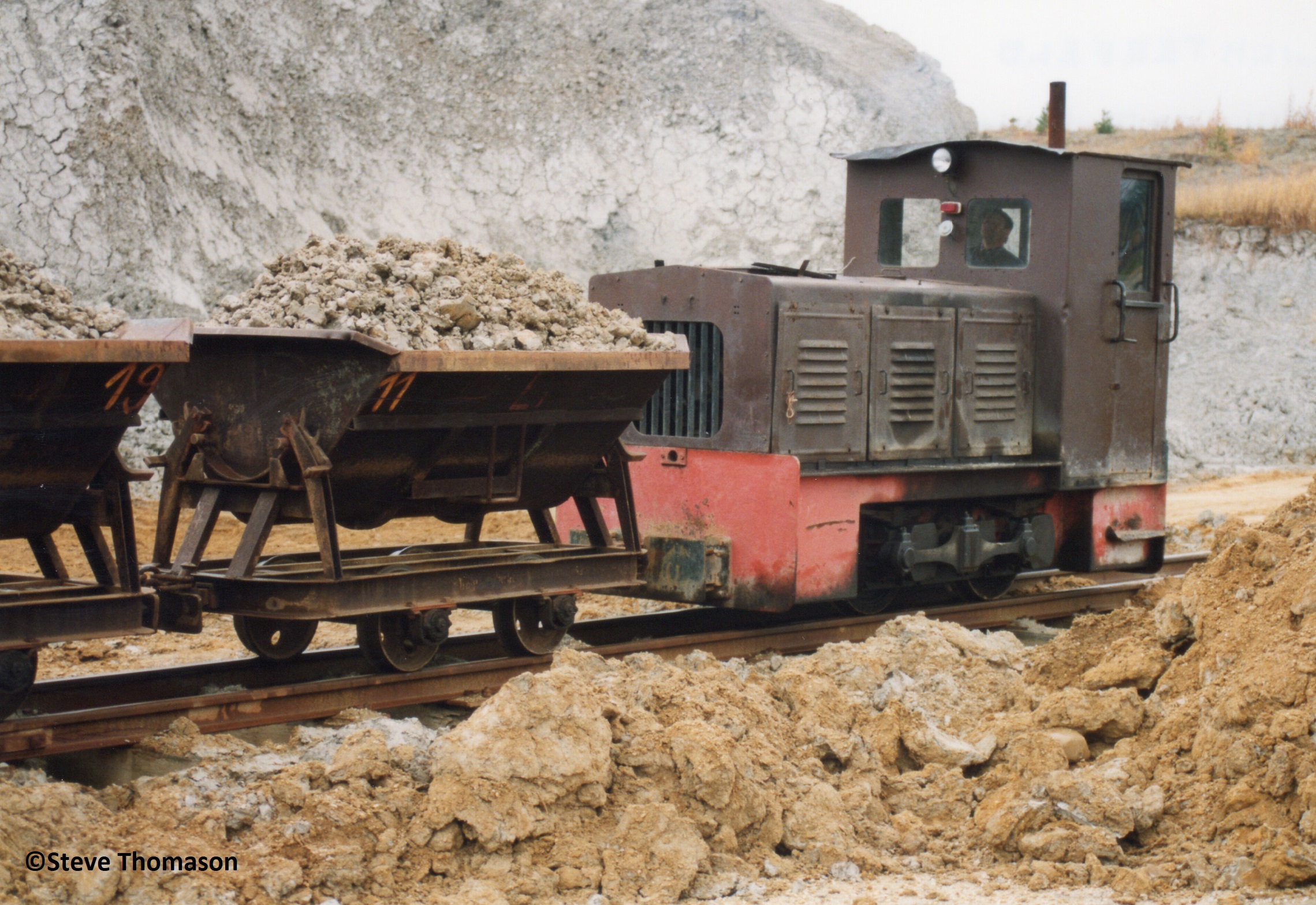

Another view of the LKM NS3 at the clay pit.

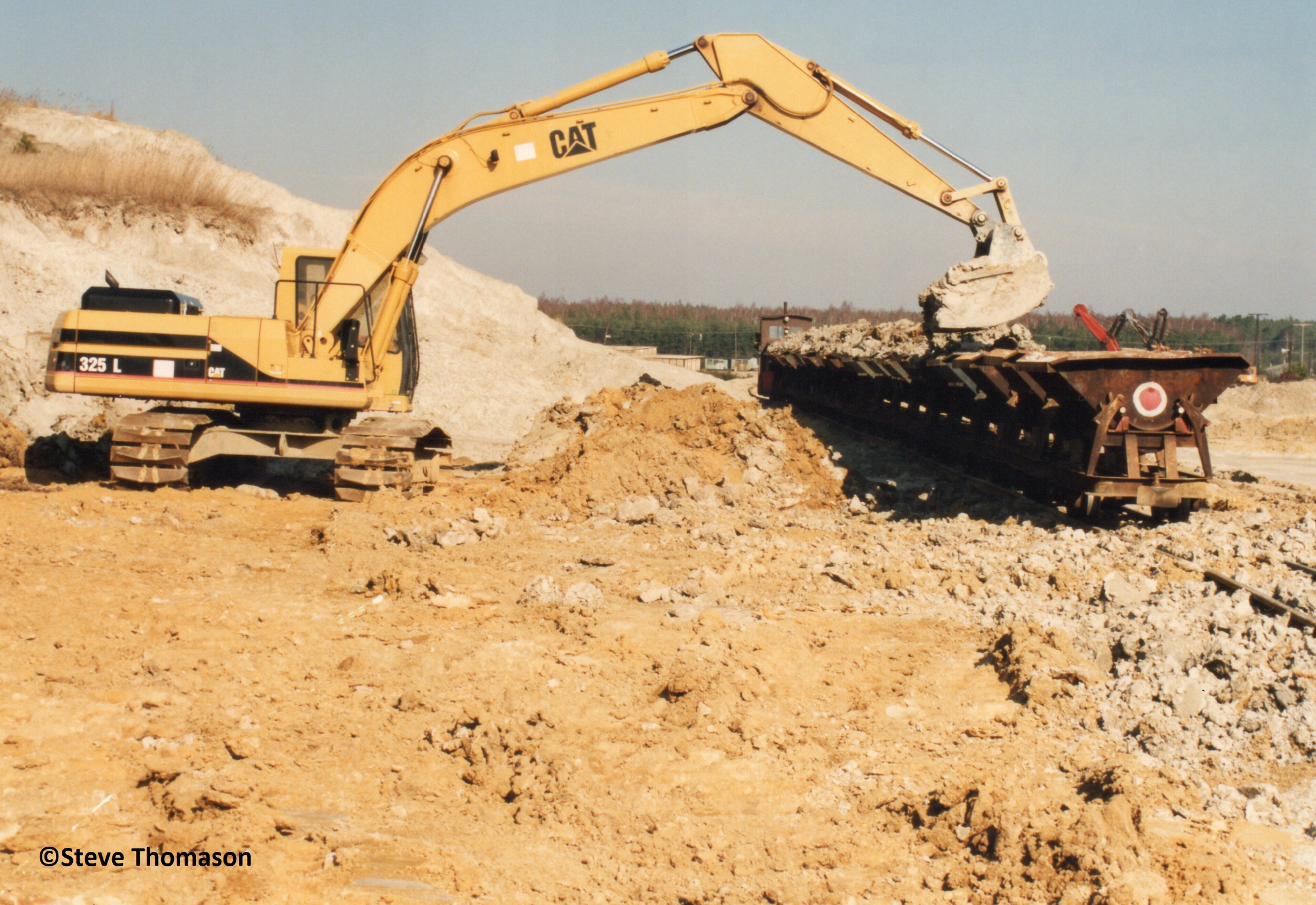

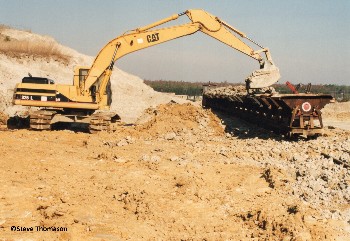

Loading the long train of skips in 1994. The railway is now just operational on the occasional trip to the sand pits.
